The SN74ALS688NSR is an 8-bit inverting logic IC with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It has a propagation delay of 22ns and a turn-on delay time of 20ns. The device is RoHS compliant and is available in a SOP package with a package quantity of 2000 units per reel. The IC operates at 5V with a maximum supply current of 19mA and a maximum supply voltage of 5.5V, and has a low level output current of 24mA and a high level output current of -2.6mA.
PackageSOP
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74ALS688NSR technical specifications.
General
| Package/Case | SOP |
| High Level Output Current | -2.6mA |
| Lead Free | Lead Free |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 19mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Operating Supply Voltage | 5V |
| Output Type | TOTEM POLE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Inverting |
| Propagation Delay | 22ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74ALS |
| Technology | BIPOLAR |
| Turn-On Delay Time | 20ns |
| Weight | 0.009408oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ALS688NSR Datasheet
Download the complete datasheet for Texas Instruments SN74ALS688NSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

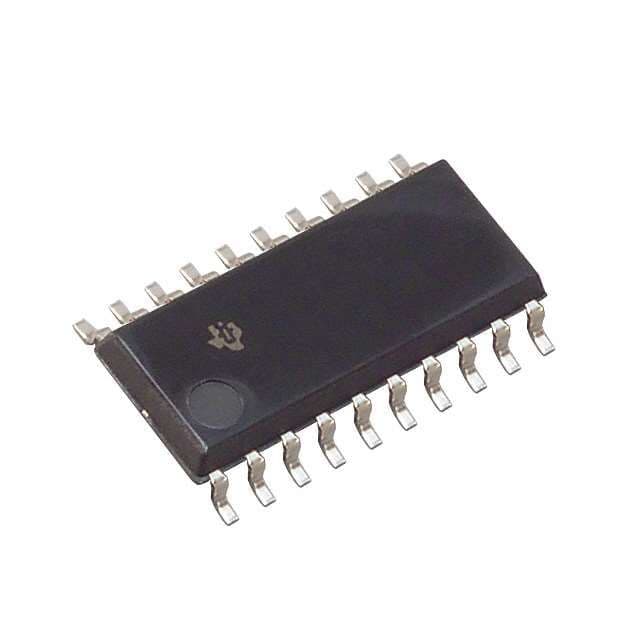

Product Images
