PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74ALS805AN technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | -15mA |
| Logic Function | NOR GATE |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 24mA |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Propagation Delay | 8ns |
| RoHS Compliant | Yes |
| Series | 74ALS |
| Technology | BIPOLAR |
| Turn-On Delay Time | 8ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74ALS805AN Datasheet
Download the complete datasheet for Texas Instruments SN74ALS805AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

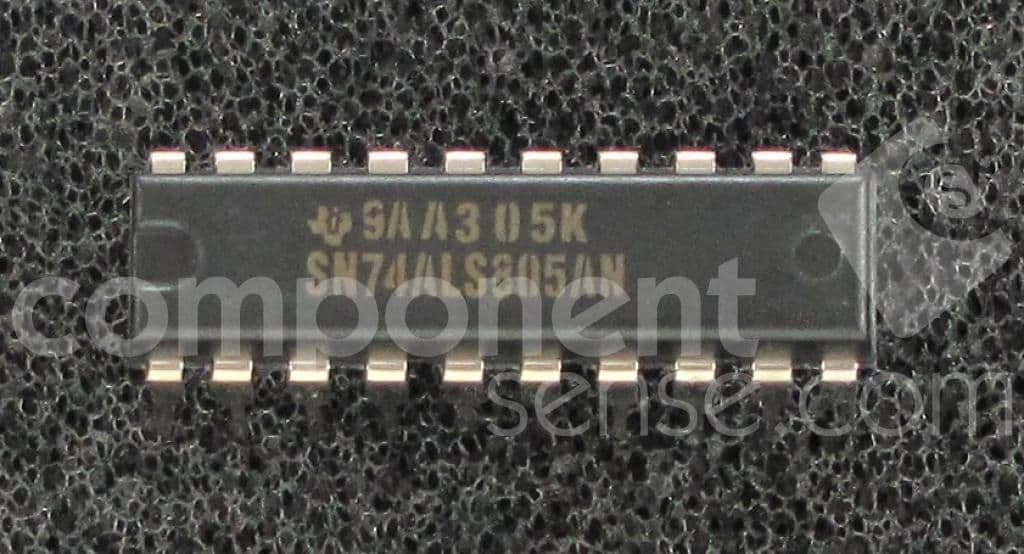

Product Images
