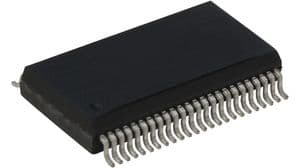

SN74ALVC164245DLR

16-Bit Bidirectional Level Shifter Transceiver, 3-State, 300Mbps, SSOP

16-bit bidirectional level-shifting transceiver with 3-state outputs. Features 2.5V to 3.3V and 3.3V to 5V translation capabilities, operating at a 300Mbps data rate. This CMOS technology component offers 16 channels, 16 inputs, and 16 outputs with a propagation delay of 5.8ns. Designed for surface mount installation in a 48-SSOP package, it operates from -40°C to 85°C and supports 24mA low-level and -24mA high-level output current.

PackageSSOP

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Texas Instruments SN74ALVC164245DLR technical specifications.

General

Package/Case	SSOP
Data Rate	300Mbps
Direction	Bidirectional
High Level Output Current	-24mA
Lead Free	Lead Free
Logic Function	Level Shifter, Transceiver, Translator
Low Level Output Current	24mA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	2.3V
Mount	Surface Mount
Number of Bits	16
Number of Channels	16
Number of Circuits	8
Number of Elements	2
Number of Inputs	16
Number of Outputs	16
Output Current	50mA
Output Type	3-STATE
Package Quantity	1000
Packaging	Tape and Reel
Polarity	Non-Inverting
Propagation Delay	5.8ns
Quiescent Current	40uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	74ALVC
Technology	CMOS
Turn-On Delay Time	2.4ns
Weight	0.021175oz
