Dual positive-edge-triggered D-type flip-flops with clear and preset functionality. Features 2 bits of storage, CMOS technology, and a maximum operating frequency of 100MHz. Operates from 0.8V to 2.7V supply voltage with a propagation delay of 12ns. Surface mountable in a 14-VQFN package, offering 9mA output current and a wide operating temperature range of -40°C to 85°C.
Frequency100MHz
PackageVQFN
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AUC74RGYR technical specifications.
General
Package/Case
VQFN
Clock Edge Trigger Type
Positive Edge
Frequency
100MHz
Height
0.95mm
High Level Output Current
-9mA
Lead Free
Lead Free
Length
3.65mm
Logic Function
D-Type, Flip-Flop
Low Level Output Current
9mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
2.7V
Min Supply Voltage
800mV
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Input Lines
1
Number of Output Lines
1
Number of Outputs
4
Output Current
9mA
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
12ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AUC
Technology
CMOS
Thickness
900um
Turn-On Delay Time
9.5ns
Weight
0.001136oz
Width
3.65mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AUC74RGYR Datasheet
Download the complete datasheet for Texas Instruments SN74AUC74RGYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

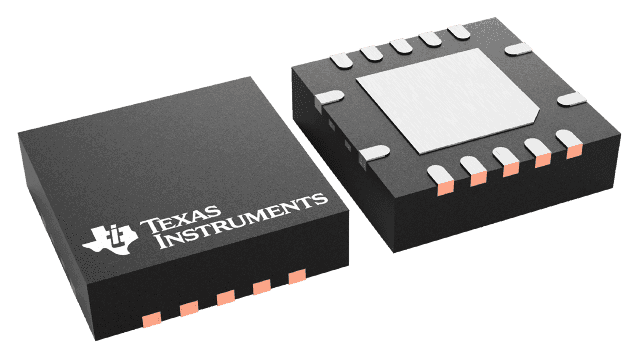

Product Images
