PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74AUP1G00DSF2 technical specifications.
General
| Package/Case | SON |
| High Level Output Current | 4mA |
| Lead Free | Lead Free |
| Logic Function | NAND GATE |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Propagation Delay | 6.5ns |
| Quiescent Current | 500nA |
| RoHS Compliant | Yes |
| Series | 74AUP |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74AUP1G00DSF2 Datasheet
Download the complete datasheet for Texas Instruments SN74AUP1G00DSF2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

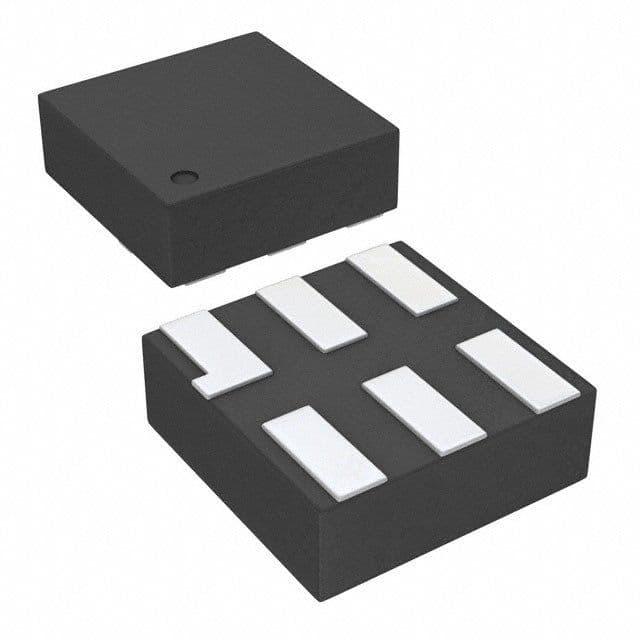

Product Images
