Texas Instruments
SN74AVC8T245PW
8-Bit Bidirectional Translator, 320Mbps, 1.2-3.6V, CMOS, 24-Pin TSSOP
8-bit bidirectional voltage level translator IC, featuring 8 channels with 3-STATE outputs. Supports data rates up to 320Mbps with a propagation delay of 2.5ns. Operates with supply voltages from 1.2V to 3.6V, offering 12mA output current. CMOS technology, surface mountable in a TSSOP package, with a wide operating temperature range of -40°C to 125°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74AVC8T245PW technical specifications.
General
Package/Case
TSSOP
Channel Type
Bidirectional
Data Rate
320Mbps
Direction
Bidirectional
High Level Output Current
-12mA
Logic Function
Translator, Transceiver, Inverting
Low Level Output Current
12mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Inputs
1
Number of Outputs
1
Output Current
12mA
Output Type
3-STATE
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
2.5ns
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74AVC
Technology
CMOS
Thickness
1mm
Turn-On Delay Time
8.7ns
Weight
0.003157oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74AVC8T245PW Datasheet
Download the complete datasheet for Texas Instruments SN74AVC8T245PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

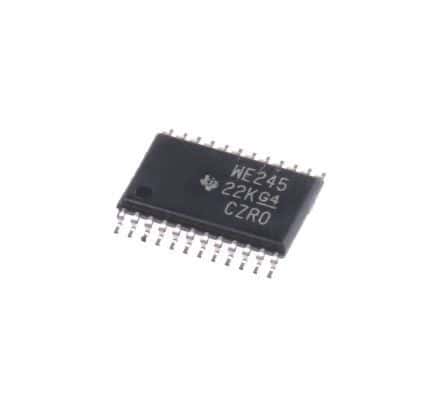

Product Images
