Six-element CMOS inverter IC, operating from 2V to 6V with a typical 5V supply. Features a 14-pin PDIP through-hole package, 16ns propagation delay, and 5.2mA output current. This RoHS compliant component offers a -40°C to 85°C operating temperature range.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74HC04N technical specifications.
General
| Package/Case | PDIP |
| Height | 4.57mm |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | Buffer, Inverter |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 6 |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 5.2mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 16ns |
| Quiescent Current | 2uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 74HC |
| Technology | CMOS |
| Turn-On Delay Time | 20ns |
| Weight | 0.032734oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HC04N Datasheet
Download the complete datasheet for Texas Instruments SN74HC04N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

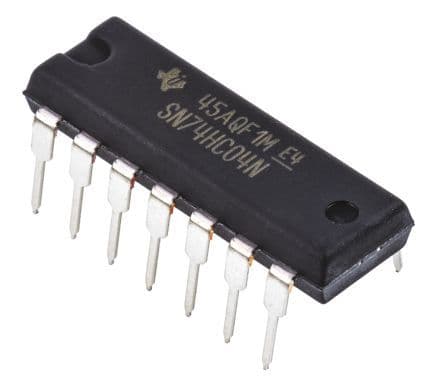

Product Images
