4-channel, non-inverting buffer/line driver with 3-state outputs. CMOS technology enables operation from 2V to 6V supply voltage, with a typical 5V operating voltage. Features include 7.8mA output current at both low and high levels, and a maximum output current of 5.2mA. Designed for through-hole mounting in a 14-pin PDIP package, this component offers a propagation delay of 25ns and operates within a temperature range of -40°C to 85°C.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HC125N technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | -7.8mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 7.8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5.2mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5V |
| Output Current | 7.8mA |
| Output Type | 3-STATE |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 25ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Technology | CMOS |
| Turn-On Delay Time | 190ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HC125N Datasheet
Download the complete datasheet for Texas Instruments SN74HC125N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

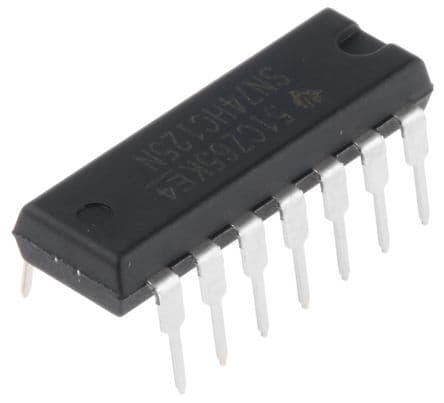

Product Images
