Single 3-to-8 decoder/demultiplexer IC featuring CMOS technology. This integrated circuit offers 8 output lines from 3 input lines, with a maximum operating supply voltage of 6V and a typical operating voltage of 5V. It operates across a temperature range of -40°C to 85°C and has a propagation delay of 45ns. The component is packaged in a 16-pin PDIP for through-hole mounting and is RoHS compliant.
PackagePDIP
MountingThrough Hole
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HC138N technical specifications.
General
| Bandwidth | 28MHz |
| Package/Case | PDIP |
| Height | 4.57mm |
| High Level Output Current | -5.2mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | Demultiplexer, Decoder |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Polarity | Inverting |
| Propagation Delay | 45ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Type | Single |
| Technology | CMOS |
| Turn-On Delay Time | 225ns |
| Weight | 0.03357oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HC138N Datasheet
Download the complete datasheet for Texas Instruments SN74HC138N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

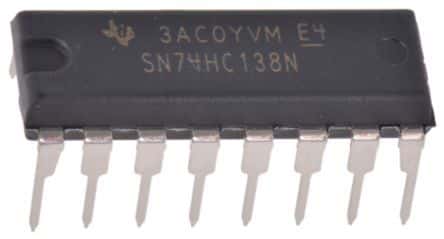

Product Images
