CMOS 8-input, 1-output multiplexer designed for logic applications. This integrated circuit features a single independent circuit with 8 input lines and 1 output line, operating with a supply voltage range of 2V to 6V. It offers a bandwidth of 28MHz and a propagation delay of 13ns, with high and low level output currents of 7.8mA. Packaged in a 16-pin SOIC for surface mounting, this RoHS compliant component operates within a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74HC151D technical specifications.
General
| Bandwidth | 28MHz |
| Package/Case | SOIC |
| High Level Output Current | 7.8mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Logic Function | Multiplexer |
| Low Level Output Current | 7.8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Input Lines | 8 |
| Number of Inputs | 8 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Propagation Delay | 13ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Type | Single |
| Weight | 0.004998oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HC151D Datasheet
Download the complete datasheet for Texas Instruments SN74HC151D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

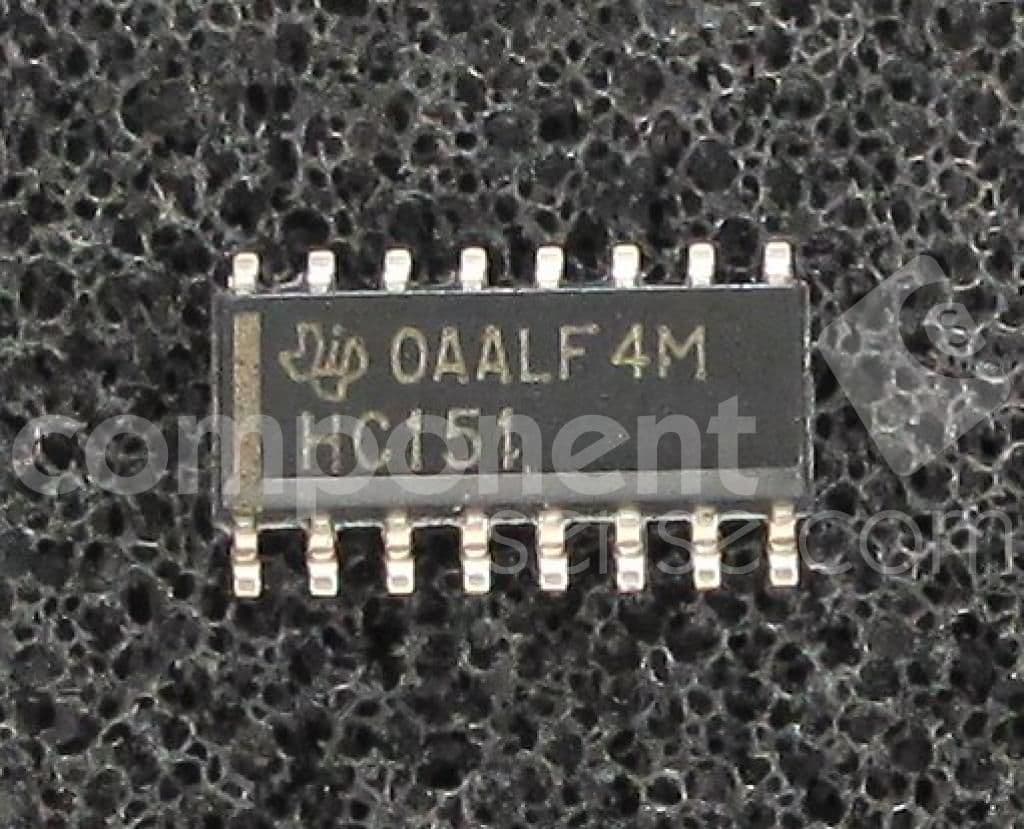

Product Images
