Synchronous 4-bit binary UP counter, CMOS technology, operating from 2V to 6V with a typical 5V supply. Features asynchronous reset and positive edge clock triggering, achieving a maximum frequency of 44MHz. Housed in a 16-pin SOIC surface-mount package with a propagation delay of 275ns. RoHS compliant and lead-free.
Frequency44MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74HC161D technical specifications.
General
Package/Case
SOIC
Clock Edge Trigger Type
Positive Edge
Direction
Up, Unidirectional
Frequency
44MHz
Height
1.58mm
Lead Free
Lead Free
Length
9.9mm
Logic Function
Counter
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
4
Number of Bits per Element
4
Number of Circuits
4
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
40
Packaging
Rail/Tube
Propagation Delay
275ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Asynchronous
RoHS Compliant
Yes
Series
74HC
Sync/Async
Synchronous
Technology
CMOS
Turn-On Delay Time
275ns
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74HC161D Datasheet
Download the complete datasheet for Texas Instruments SN74HC161D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

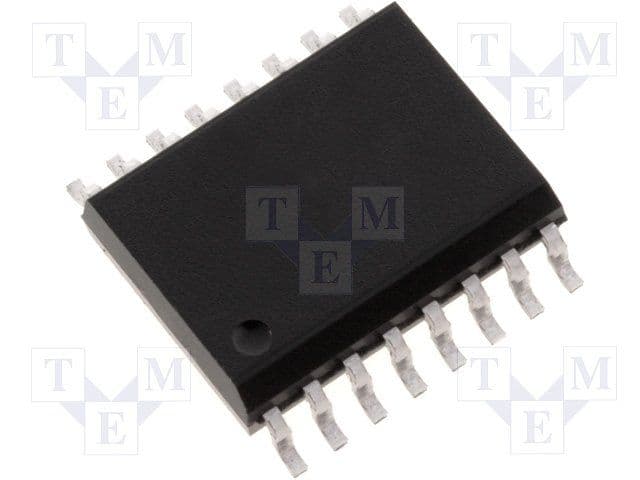

Product Images
