8-channel, 3-state buffer/line driver IC featuring CMOS technology. Operates with a supply voltage range of 2V to 6V, supporting a typical 5V operating voltage. Offers 8 non-inverting buffer elements, each with 4 bits, providing 8 input and 8 output lines. Designed for through-hole mounting in a 20-pin PDIP package, with a wide operating temperature range of -40°C to 85°C. Features a high level output current of -7.8mA and a low level output current of 7.8mA.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HC244N technical specifications.
General
| Package/Case | PDIP |
| Height | 4.57mm |
| High Level Output Current | -7.8mA |
| Lead Free | Lead Free |
| Length | 24.33mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 7.8mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 4 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 2 |
| Number of Input Lines | 8 |
| Number of Inputs | 8 |
| Number of Output Lines | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 250ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Technology | CMOS |
| Turn-On Delay Time | 165ns |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HC244N Datasheet
Download the complete datasheet for Texas Instruments SN74HC244N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

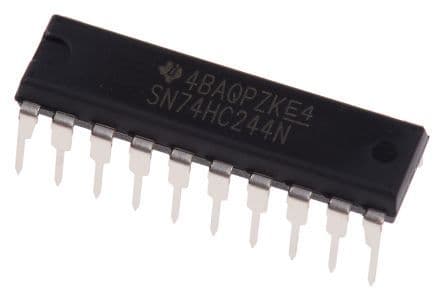

Product Images
