Octal D-Type Flip-Flop IC, featuring 8 independent D-type flip-flops with a clear input. Operates with a positive edge clock trigger and a maximum frequency of 25MHz. Supports a wide operating supply voltage range from 2V to 6V, with a typical 5V operation. Offers a high level output current of -5.2mA and a low level output current of 5.2mA. Packaged in a 20-SOIC surface mount configuration, this CMOS technology component is RoHS compliant and operates across a temperature range of -40°C to 85°C.
Frequency25MHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HC273DW technical specifications.
General
| Package/Case | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 25MHz |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 5.2mA |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Current | 5.2mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 200ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Technology | CMOS |
| Turn-On Delay Time | 13ns |
| Weight | 0.017662oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HC273DW Datasheet
Download the complete datasheet for Texas Instruments SN74HC273DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

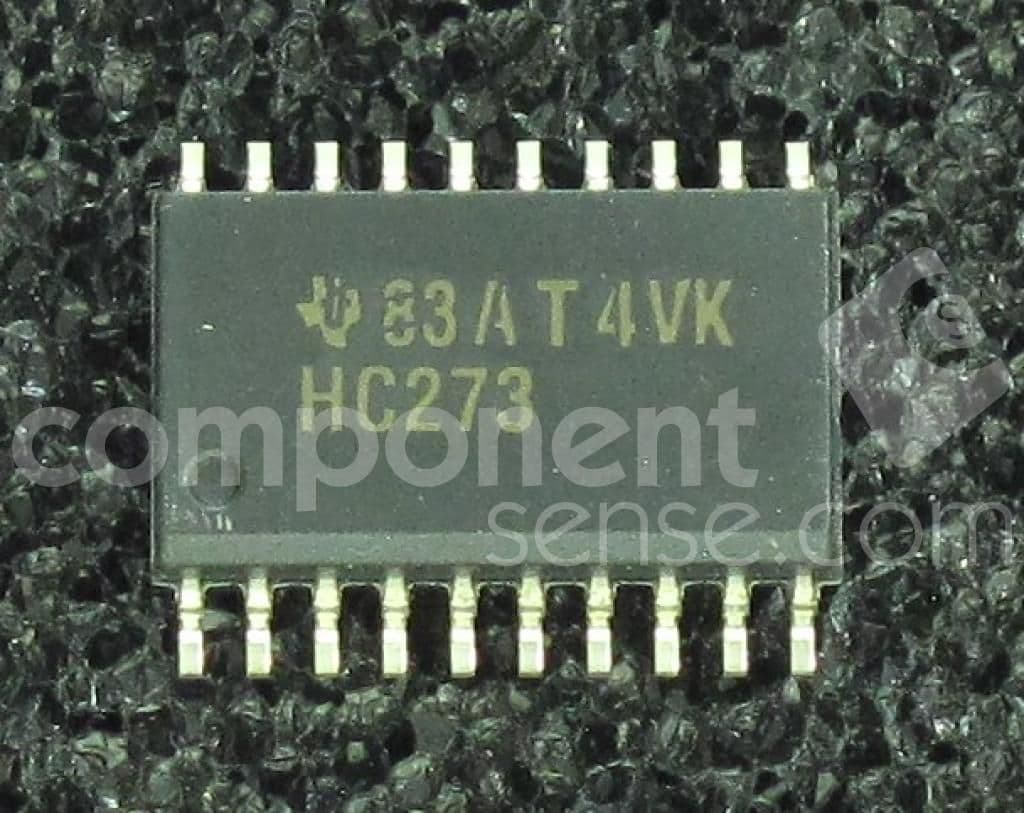

Product Images
