Dual D-type flip-flops with positive edge triggering, clear, and preset functionality. Features 29MHz maximum frequency, 15ns propagation delay, and operates from a 2V to 6V supply voltage. Surface mountable in a 14-SOIC package, this CMOS logic IC offers 5.2mA output current and a wide operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency29MHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HC74D technical specifications.
General
Package/Case
SOIC
Clock Edge Trigger Type
Positive Edge
Frequency
29MHz
Height
1.58mm
High Level Output Current
-5.2mA
Lead Free
Lead Free
Length
8.65mm
Logic Function
D-Type, Flip-Flop
Low Level Output Current
5.2mA
Max Frequency
29MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Circuits
2
Number of Elements
2
Number of Input Lines
4
Number of Output Lines
2
Operating Supply Voltage
5V
Output Current
5.2mA
Output Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
15ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Turn-On Delay Time
15ns
Weight
0.004318oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74HC74D Datasheet
Download the complete datasheet for Texas Instruments SN74HC74D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

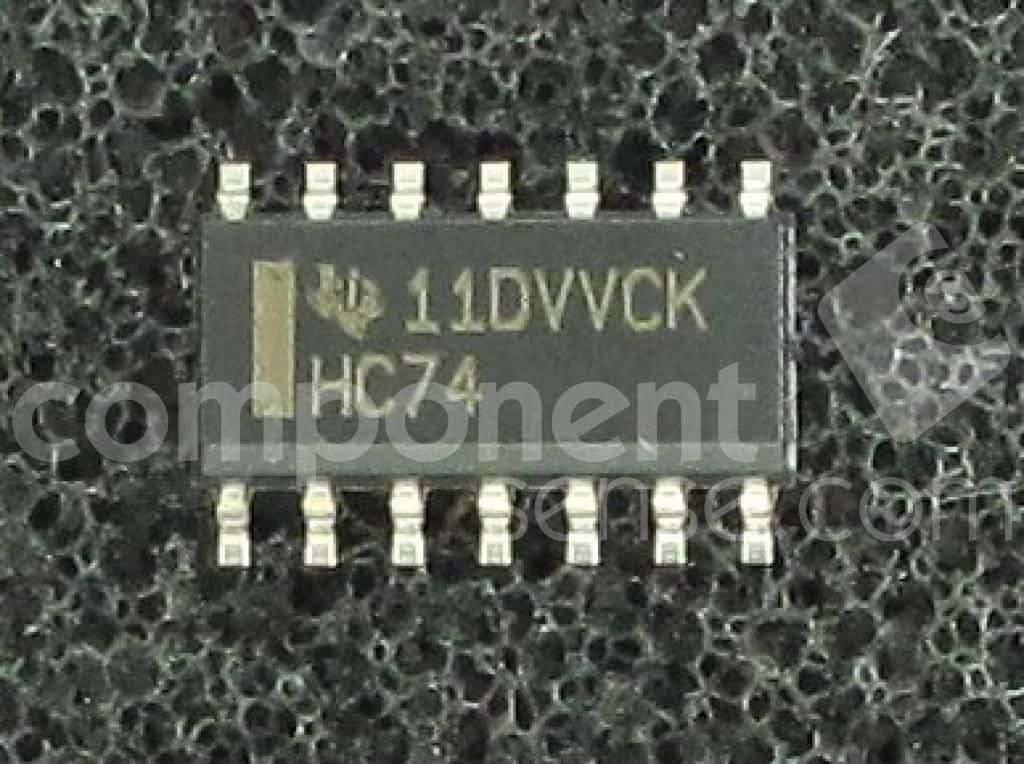

Product Images
