Dual D-Type positive-edge-triggered flip-flops with clear and preset, featuring 2 circuits and 1 bit per element. Operates with a supply voltage range of 2V to 6V, nominal 5V, and a maximum frequency of 29MHz. This CMOS logic IC offers a 290ns propagation delay and 175ns turn-on delay, with output currents of 5.2mA. Packaged in a 14-TSSOP for surface mounting, it operates from -40°C to 85°C and is RoHS compliant.
Frequency60MHz
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HC74PWR technical specifications.
General
| Package/Case | TSSOP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 60MHz |
| High Level Output Current | -5.2mA |
| Input Capacitance | 3pF |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 5.2mA |
| Max Frequency | 29MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Nominal Supply Current | 40uA |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 4 |
| Number of Inputs | 1 |
| Number of Output Lines | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 5V |
| Output Current | 5.2mA |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 290ns |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74HC |
| Technology | CMOS |
| Thickness | 1mm |
| Turn-On Delay Time | 175ns |
| Weight | 0.002018oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74HC74PWR Datasheet
Download the complete datasheet for Texas Instruments SN74HC74PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

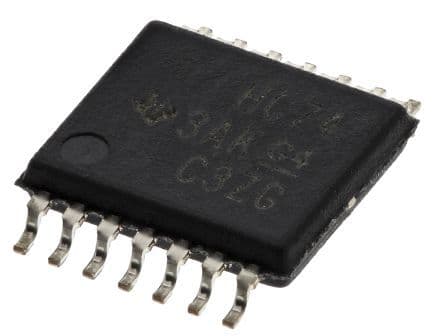

Product Images
