Single 3-to-8 decoder/demultiplexer IC featuring CMOS technology. This integrated circuit offers 8 output lines and 3 input lines, with a bandwidth of 28MHz and a propagation delay of 45ns. Operating supply voltage is 5V, with a range of 4.5V to 5.5V, and it supports a low-level output current of 4mA and a high-level output current of -4mA. Packaged in a 16-pin PDIP for through-hole mounting, this RoHS compliant component is supplied in a tube.
PackagePDIP
MountingThrough Hole
PolarityInverting
Power1.6W
Quick Jump:
Technical Specifications
Texas Instruments SN74HCT138N technical specifications.
General
Bandwidth
28MHz
Package/Case
PDIP
High Level Output Current
-4mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Demultiplexer, Decoder
Low Level Output Current
4mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits
8
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Input Lines
3
Number of Inputs
3
Number of Output Lines
8
Number of Outputs
8
Operating Supply Voltage
5V
Output Current
25mA
Package Quantity
25
Packaging
Rail/Tube
Polarity
Inverting
Power Dissipation
1.6W
Propagation Delay
45ns
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HCT
Supply Type
Single
Technology
CMOS
Turn-On Delay Time
45ns
Weight
0.03357oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74HCT138N Datasheet
Download the complete datasheet for Texas Instruments SN74HCT138N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

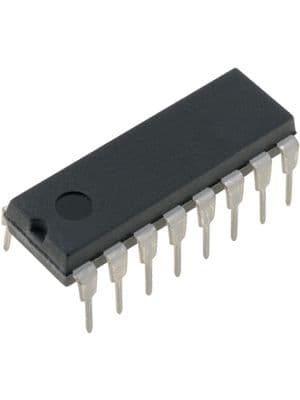

Product Images
