Dual D-type positive-edge triggered flip-flop IC, featuring 2 elements with 1 bit per element. Operates with a 5V supply voltage (4.5V to 5.5V range) and a maximum frequency of 24MHz. This CMOS logic component offers a propagation delay of 44ns and a turn-on delay time of 28ns. Packaged in a 14-pin PDIP for through-hole mounting, it supports 4 input lines and 2 output lines with a high/low level output current of 4mA. RoHS compliant and lead-free.
Frequency46MHz
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74HCT74N technical specifications.
General
Package/Case
PDIP
Clock Edge Trigger Type
Positive Edge
Frequency
46MHz
Height
4.57mm
High Level Output Current
-4mA
Input Capacitance
3pF
Lead Free
Lead Free
Length
19.3mm
Logic Function
D-Type, Flip-Flop
Low Level Output Current
4mA
Max Frequency
24MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Bits
2
Number of Bits per Element
1
Number of Circuits
2
Number of Elements
2
Number of Input Lines
4
Number of Output Lines
2
Operating Supply Voltage
5V
Output Current
4mA
Package Quantity
25
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
44ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HCT
Technology
CMOS
Turn-On Delay Time
28ns
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74HCT74N Datasheet
Download the complete datasheet for Texas Instruments SN74HCT74N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

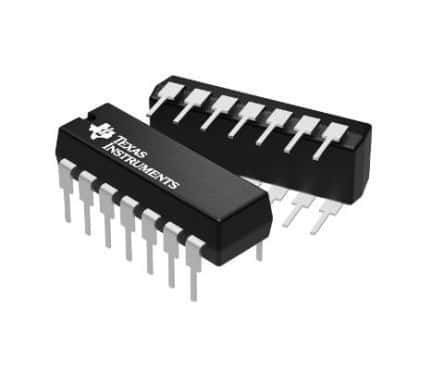

Product Images
