Six-channel bipolar inverter IC featuring a 4.75V to 5.25V operating supply voltage. This through-hole component offers a 15ns propagation delay and 8mA maximum output current. Packaged in a 14-PDIP with dimensions of 19.3mm length, 6.35mm width, and 4.57mm height, it operates from 0°C to 70°C and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications

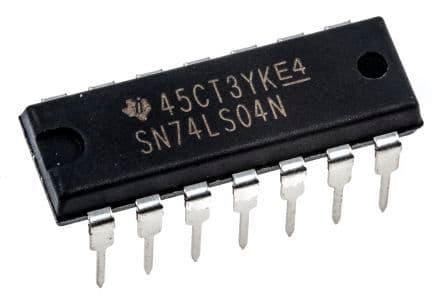

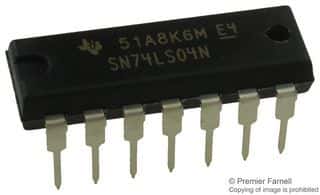

Texas Instruments SN74LS04N technical specifications.
General
Package/Case
PDIP
Height
4.57mm
High Level Output Current
-400uA
Lead Free
Lead Free
Length
19.3mm
Logic Function
Inverter
Low Level Output Current
8mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
8mA
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Nominal Supply Current
100uA
Number of Bits
6
Number of Channels
6
Number of Circuits
6
Number of Elements
6
Number of Gates
6
Number of Inputs
1
Number of Output Lines
6
Operating Supply Current
100uA
Operating Supply Voltage
5V
Output Current
8mA
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
15ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74LS
Technology
BIPOLAR
Termination
Through Hole
Thickness
3.9mm
Turn-On Delay Time
22ns
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
