Texas Instruments
SN74LS126ANSR
4-ch, 4.75-V to 5.25-V bipolar buffers with 3-state outputs 14-SO 0 to 70
PackageSO
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LS126ANSR technical specifications.
General
| Package/Case | SO |
| High Level Output Current | 24mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 2.6mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 18ns |
| RoHS Compliant | Yes |
| Series | 74LS |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LS126ANSR Datasheet
Download the complete datasheet for Texas Instruments SN74LS126ANSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

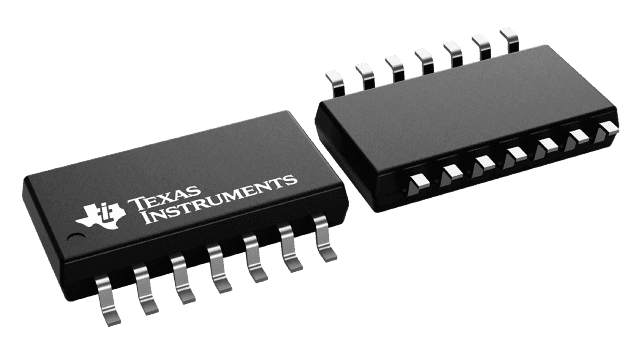

Product Images
