Quad 2-input NAND gate IC featuring Schmitt-Trigger inputs for enhanced noise immunity. Operates with a supply voltage range of 4.75V to 5.25V, supporting a 5V nominal supply. Delivers 8mA low-level output current and -400uA high-level output current. Packaged in a 14-pin PDIP for through-hole mounting, with a propagation delay of 22ns. This bipolar logic IC is RoHS compliant and operates within a temperature range of 0°C to 70°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74LS132N technical specifications.
General
Package/Case
PDIP
Height
4.57mm
High Level Output Current
-400uA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Length
19.3mm
Logic Function
NAND GATE, Schmitt Trigger
Low Level Output Current
8mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
8mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Bits
4
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Operating Supply Voltage
5V
Output Current
8mA
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
22ns
Quiescent Current
8.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
74LS
Technology
BIPOLAR
Termination
Through Hole
Turn-On Delay Time
40ns
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LS132N Datasheet
Download the complete datasheet for Texas Instruments SN74LS132N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

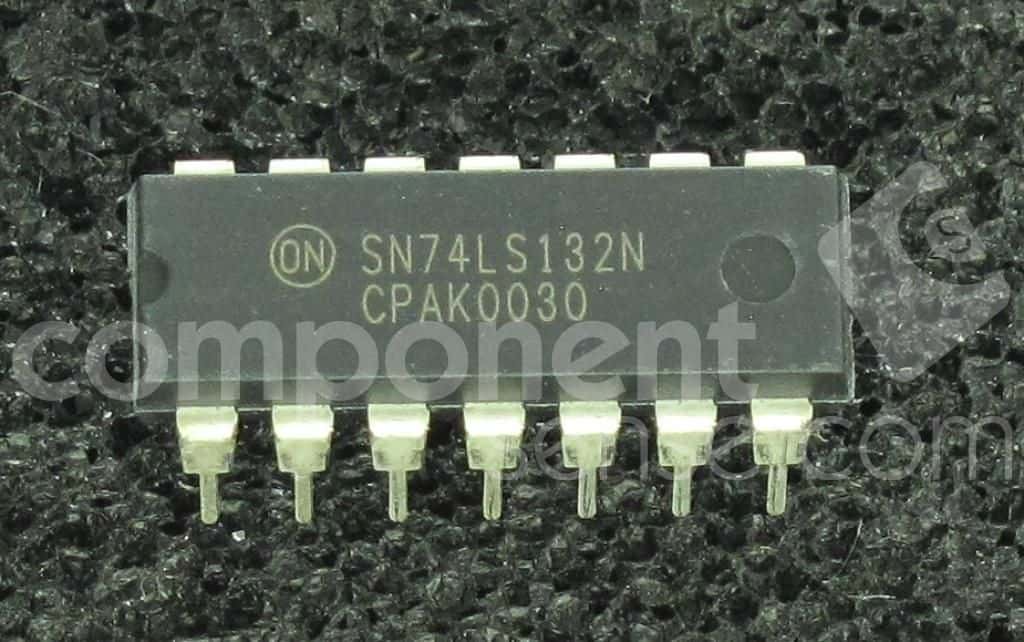

Product Images
