Dual-element monostable multivibrator IC featuring two independent circuits. Operates with a 5V supply voltage (4.75V to 5.25V) and offers a propagation delay of 45ns. Supports through-hole mounting in a 16-pin PDIP package, with a temperature range of 0°C to 70°C. Provides 8mA low-level output current and -400uA high-level output current. RoHS compliant and lead-free.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74LS221N technical specifications.
General
Package/Case
DIP
Height
4.57mm
High Level Output Current
-400uA
Independent Circuits
2
Lead Free
Lead Free
Length
19.3mm
Logic Function
Multivibrator
Low Level Output Current
8mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
4.7mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Nominal Supply Current
4.7mA
Number of Bits
2
Number of Circuits
2
Operating Supply Voltage
5V
Output Current
8mA
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
45ns
Quiescent Current
4.7mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74LS
Turn-On Delay Time
80ns
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LS221N Datasheet
Download the complete datasheet for Texas Instruments SN74LS221N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

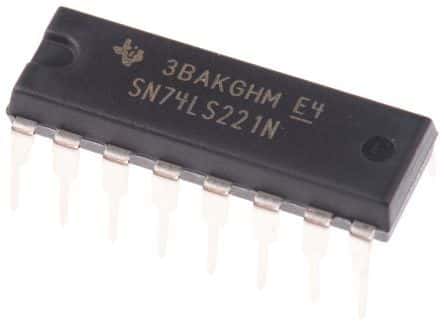

Product Images
