8-bit, 3-state, bidirectional bus transceiver with inverting logic function. Features 8 channels, through-hole mounting in a 20-pin PDIP package, and operates at 5V with a supply voltage range of 4.75V to 5.25V. Offers a low-level output current of 24mA and a high-level output current of -15mA, with a propagation delay of 12ns. This RoHS compliant component is designed for bipolar technology and has a maximum operating temperature of 70°C.
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LS245N technical specifications.
General
Package/Case
PDIP
Direction
Bidirectional
Height
4.57mm
High Level Output Current
-15mA
Lead Free
Lead Free
Length
24.33mm
Logic Function
Transceiver, Inverting
Low Level Output Current
24mA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Inputs
1
Number of Outputs
8
Number of Transceivers
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
20
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
12ns
Quiescent Current
62mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LS
Technology
BIPOLAR
Termination
Through Hole
Thickness
4.57mm
Turn-On Delay Time
12ns
Weight
0.042297oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LS245N Datasheet
Download the complete datasheet for Texas Instruments SN74LS245N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

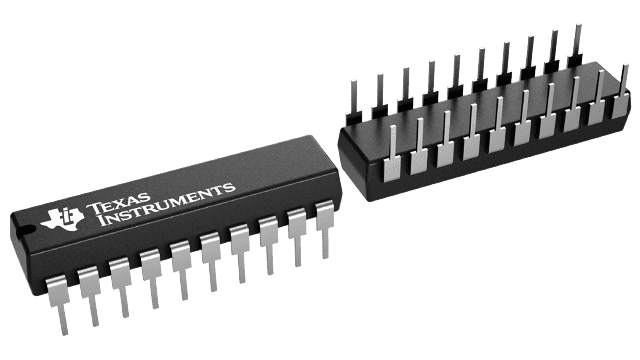

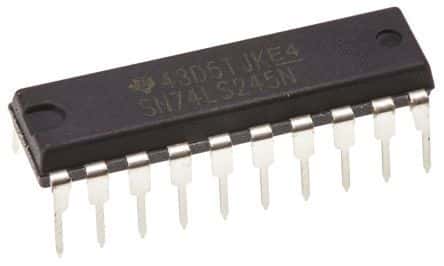

Product Images
