8-bit D-type bus interface flip-flop, positive edge triggered, featuring 8 channels and 1 element. Operates with a 5V supply voltage (4.75V to 5.25V) and supports a maximum frequency of 40MHz. This through-hole component has a propagation delay of 27ns and offers TTL output with 8mA low-level output current. Packaged in a 20-pin PDIP, it is RoHS compliant and designed for bipolar technology.
Frequency40MHz
PackagePDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LS273N technical specifications.
General
| Package/Case | PDIP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 40MHz |
| Height | 4.57mm |
| High Level Output Current | -400uA |
| Lead Free | Contains Lead |
| Length | 24.33mm |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 8mA |
| Max Frequency | 40MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 8mA |
| Output Type | TTL |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 27ns |
| Quiescent Current | 27mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LS |
| Technology | BIPOLAR |
| Turn-On Delay Time | 27ns |
| Weight | 0.042297oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LS273N Datasheet
Download the complete datasheet for Texas Instruments SN74LS273N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

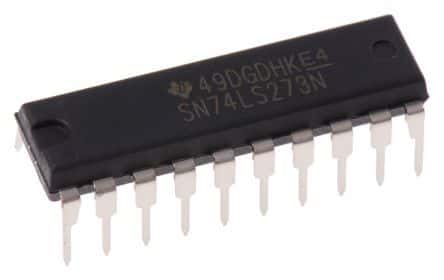

Product Images
