4-bit binary full adder IC, featuring a single element with 24ns propagation delay. This through-hole, PDIP packaged logic IC operates at 5V with a supply voltage range of 4.75V to 5.25V. It supports a maximum input voltage of 2V and a minimum of 800mV, with output currents of -400uA (high) and 8mA (low). The component is RoHS compliant and operates within a temperature range of 0°C to 70°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74LS283N technical specifications.
General
Package/Case
PDIP
Height
4.57mm
High Level Output Current
-400uA
Lead Free
Lead Free
Length
19.3mm
Logic Function
Binary Full Adder
Low Level Output Current
8mA
Max Input Voltage
2V
Min Input Voltage
800mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
95mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Bits
4
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
24ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LS
Technology
BIPOLAR
Turn-On Delay Time
24ns
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LS283N Datasheet
Download the complete datasheet for Texas Instruments SN74LS283N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

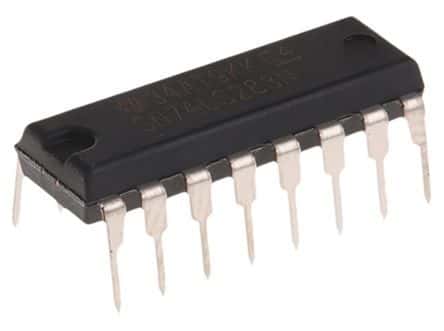

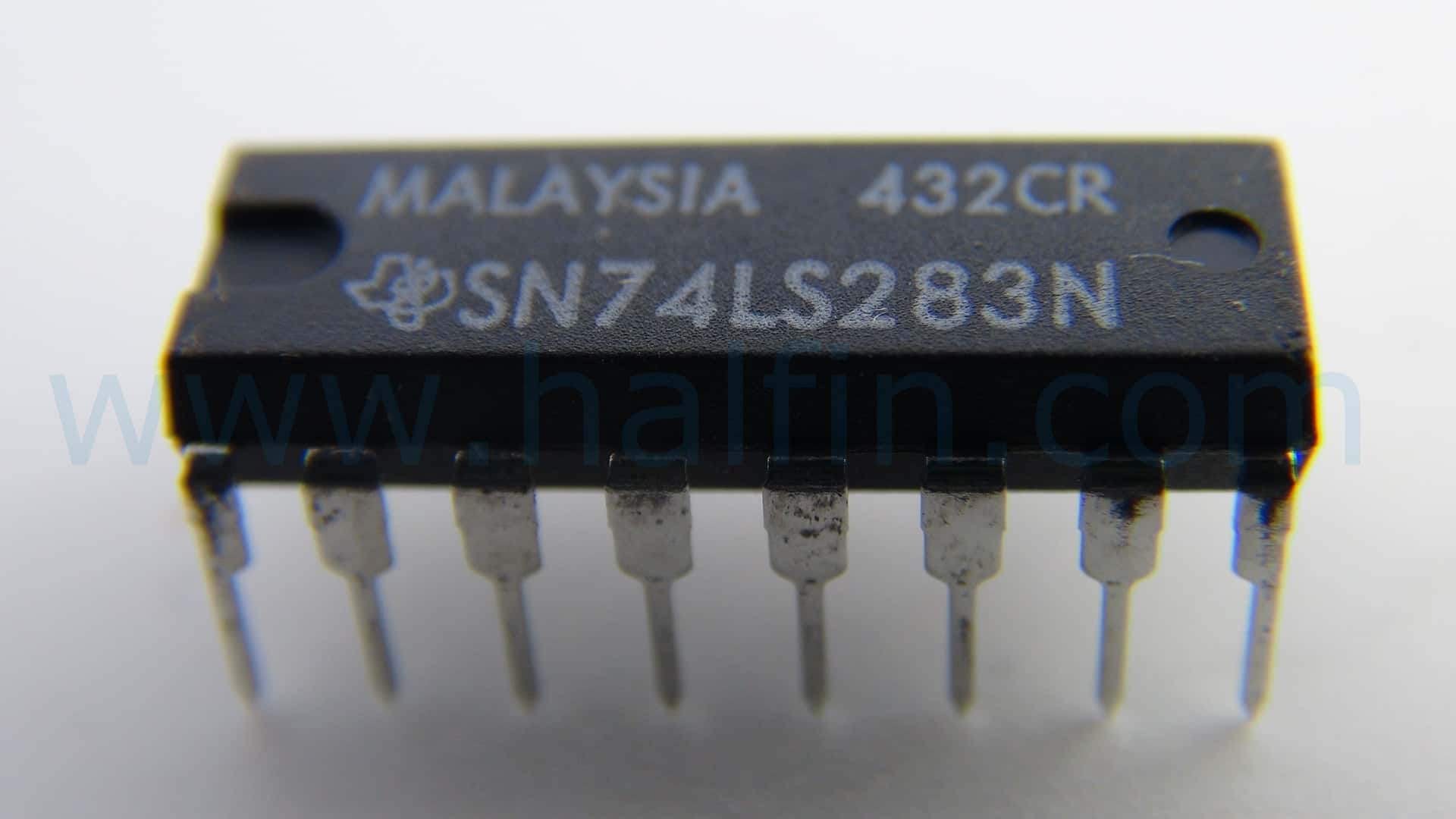

Product Images
