8-Bit Binary Up Counter/Register, featuring positive edge clock triggering and asynchronous reset. Operates at up to 35MHz with a 5V nominal supply voltage (4.75V-5.25V range) and 44mA nominal supply current. This 16-pin PDIP package supports through-hole mounting and offers 3-state outputs with 2.6mA output current. RoHS compliant with a 45ns propagation delay.
Frequency35MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN74LS590N technical specifications.
General
| Package/Case | PDIP |
| Clock Edge Trigger Type | Positive Edge |
| Direction | Up, Unidirectional |
| Frequency | 35MHz |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | Counter |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 44mA |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 2.6mA |
| Output Type | 3-STATE |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 45ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Asynchronous |
| RoHS Compliant | Yes |
| Series | 74LS |
| Technology | BIPOLAR |
| Turn-On Delay Time | 45ns |
| Weight | 0.03357oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LS590N Datasheet
Download the complete datasheet for Texas Instruments SN74LS590N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

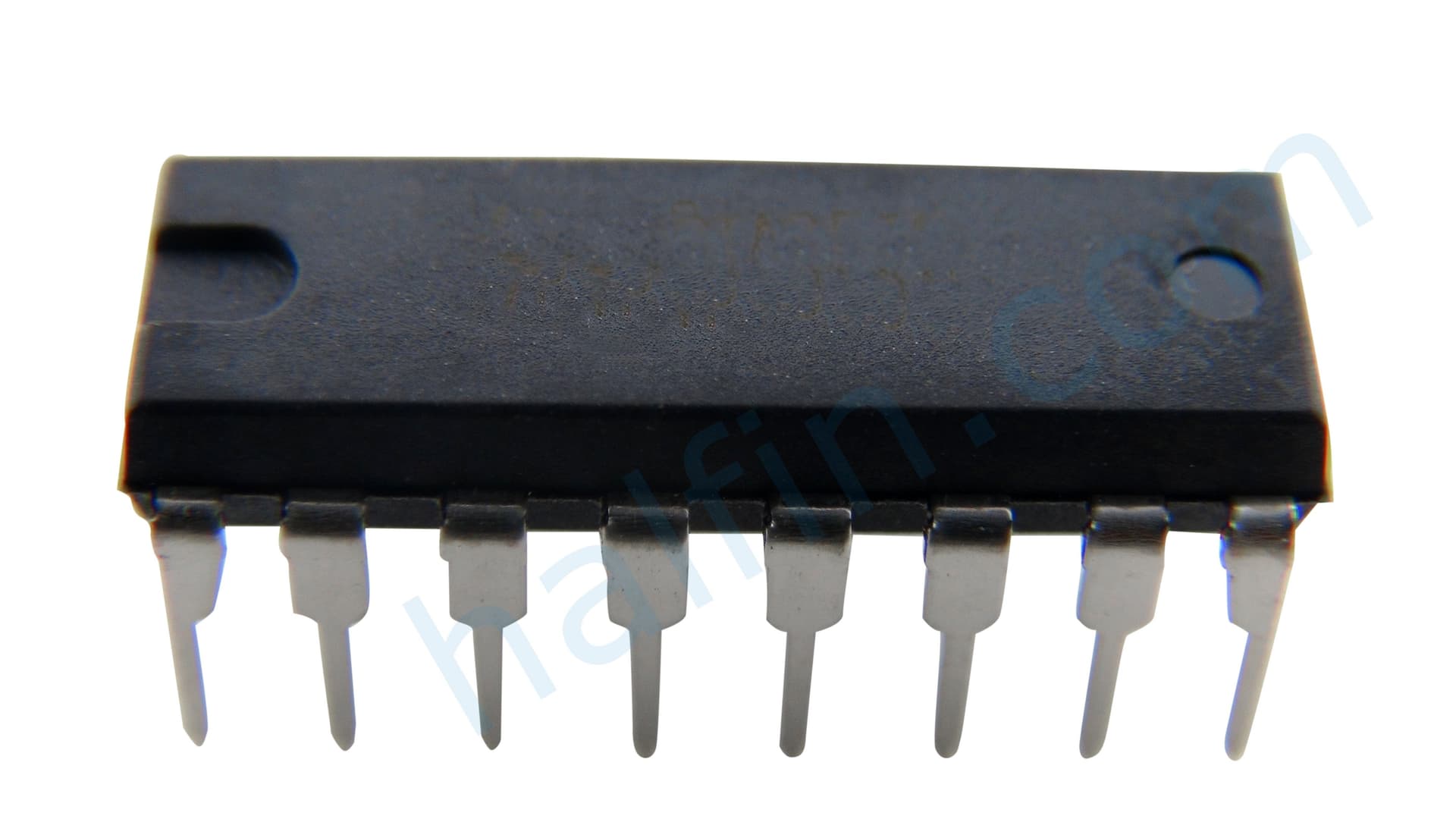

Product Images
