PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LV165ADBR technical specifications.
General
| Package/Case | SSOP |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Logic Function | Shift Register, OR GATE |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Output Lines | 2 |
| Number of Outputs | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 11.9ns |
| RoHS Compliant | Yes |
| Series | 74LV |
| Weight | 0.004536oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LV165ADBR Datasheet
Download the complete datasheet for Texas Instruments SN74LV165ADBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

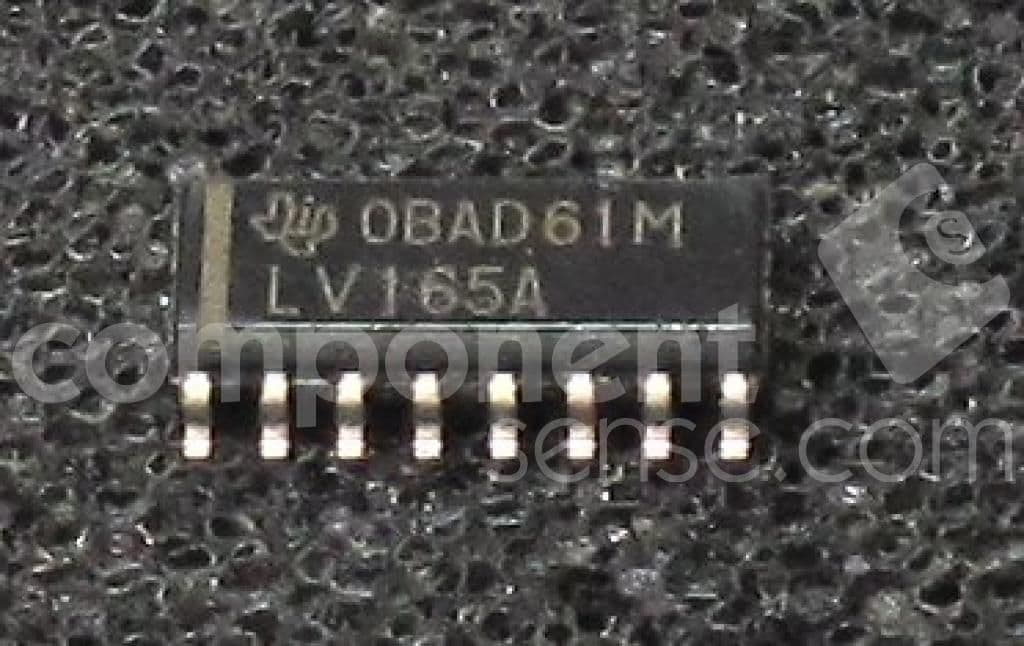

Product Images
