Dual 2-to-4 decoder/demultiplexer IC featuring 2 independent circuits. Operates with a single supply voltage range of 1.65V to 3.6V and offers a bandwidth of 100MHz. This CMOS component provides 4 output lines per circuit, with a low-level output current of 24mA and high-level output current of -24mA. Packaged in a 16-pin TSSOP for surface mounting, it boasts a propagation delay of 6.2ns and is RoHS compliant.
PackageTSSOP
MountingSurface Mount
PolarityInverting
Power200mW
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC139APWR technical specifications.
General
Bandwidth
100MHz
Package/Case
TSSOP
High Level Output Current
-24mA
Independent Circuits
2
Lead Free
Lead Free
Logic Function
Demultiplexer, Decoder
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
4
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
4
Number of Outputs
4
Package Quantity
1
Packaging
Tape and Reel
Polarity
Inverting
Power Dissipation
200mW
Propagation Delay
6.2ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Supply Type
Single
Technology
CMOS
Throw Configuration
DP4T
Turn-On Delay Time
20.6ns
Weight
0.002183oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC139APWR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC139APWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

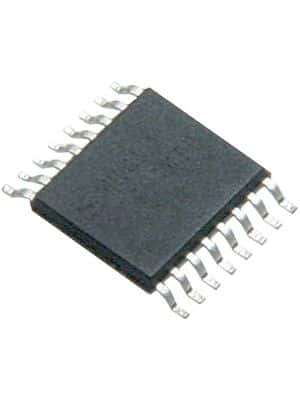

Product Images
