Single 2-input positive-NOR gate, 74LVC series, operating from 1.65V to 5.5V supply voltage. Features a maximum propagation delay of 4.5ns, with low quiescent current of 10µA. Supports high level output current of -32mA and low level output current of 32mA. This surface mount component is RoHS compliant and lead-free, packaged in tape and reel. Operating temperature range is -40°C to 125°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G02DPWR technical specifications.
General
Height
0.32mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
0.85mm
Logic Function
NOR GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Output Voltage
5.5V
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
4.5ns
Quiescent Current
10uA
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74LVC
Turn-On Delay Time
4.5ns
Width
0.85mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G02DPWR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G02DPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

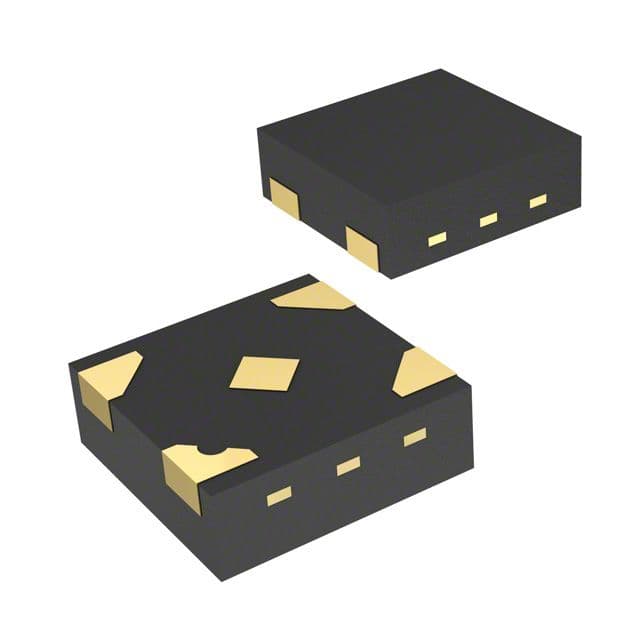

Product Images
