Single 2-input positive-AND gate, CMOS technology, operating from 1.65V to 5.5V supply. Features a maximum output current of 32mA and a propagation delay of 4ns. Packaged in a compact SOT-23 surface-mount case, this component offers a wide operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G08DBVR technical specifications.
General
Package/Case
SOT-23
Height
1.45mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2.9mm
Logic Function
AND GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
32mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
32mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
4ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
1.2mm
Turn-On Delay Time
4.5ns
Weight
0.000557oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G08DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G08DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

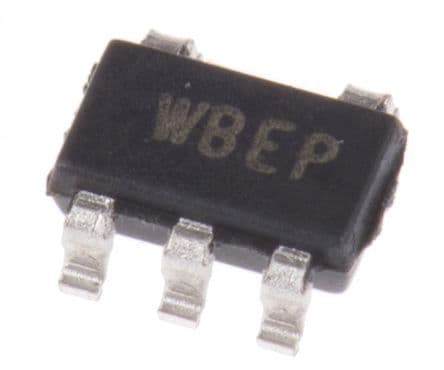

Product Images
