Single D-Type Flip-Flop, CMOS technology, operating from 1.65V to 5.5V. Features positive edge clock triggering, a maximum frequency of 175MHz, and a propagation delay of 13.4ns. Supports asynchronous clear functionality with 32mA output current capability. Packaged in a 6-SOT-23 surface mount configuration, this component operates across a temperature range of -40°C to 125°C. RoHS compliant and lead-free.
Frequency175MHz
PackageSOT-23
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G175DBVR technical specifications.
General
Package/Case
SOT-23
Clock Edge Trigger Type
Positive Edge
Frequency
175MHz
High Level Output Current
-32mA
Input Capacitance
3pF
Input Type
SINGLE-ENDED
Lead Free
Lead Free
Length
2.9mm
Logic Function
D-Type
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Input Lines
1
Number of Output Lines
1
Number of Outputs
1
Output Current
32mA
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
13.4ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Thickness
1.2mm
Turn-On Delay Time
5.7ns
Weight
0.000229oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G175DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G175DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

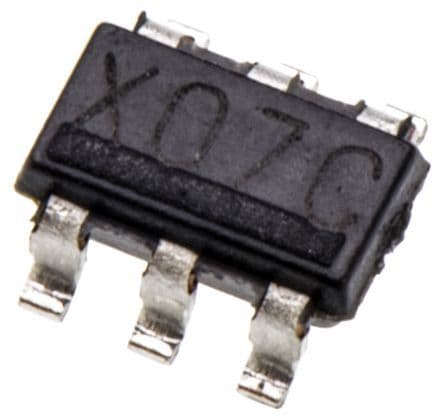

Product Images
