Single-channel CMOS buffer with Schmitt-Trigger inputs, operating from 1.65V to 5.5V. Features a 5ns propagation delay and 11ns turn-on delay time. Offers push-pull output with ±32mA high/low output current. Packaged in a 5-SOT-23 surface-mount configuration, suitable for operation between -40°C and 125°C. RoHS compliant.
PackageSOT-23
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G17DBVR technical specifications.
General
Package/Case
SOT-23
High Level Output Current
-32mA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Logic Function
Buffer, Inverting, Schmitt Trigger
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Output Type
PUSH-PULL
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5ns
Quiescent Current
1.5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
1.2mm
Turn-On Delay Time
11ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G17DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G17DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

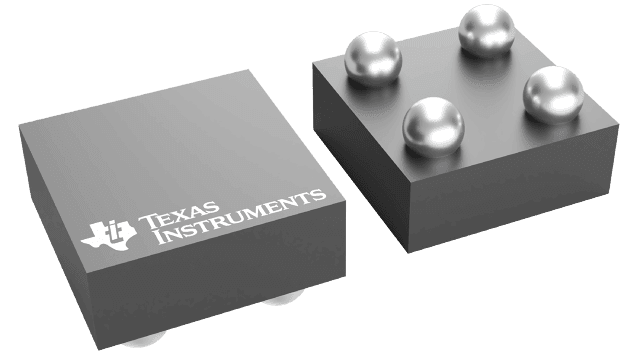

Product Images
