General-purpose analog switch, 1-channel, 2:1 (SPDT) configuration. Features a 300MHz bandwidth and 15Ω on-state resistance. Operates with a single supply voltage from 1.65V to 5.5V, drawing a maximum supply current of 10µA. Packaged in a compact SOT with dimensions of 1.6mm (L) x 1.2mm (W) x 600µm (H), suitable for surface mounting. Offers a propagation delay of 300ps and operates across a temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSOT
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G3157DRLR technical specifications.
General
Bandwidth
300MHz
Package/Case
SOT
Height
600um
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
10uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
On-State Resistance
15R
Operating Supply Current
1uA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
300ps
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Supply Current
1uA
Supply Type
Single
Thickness
550um
Throw Configuration
SPDT
Weight
9.9E-05oz
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G3157DRLR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G3157DRLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

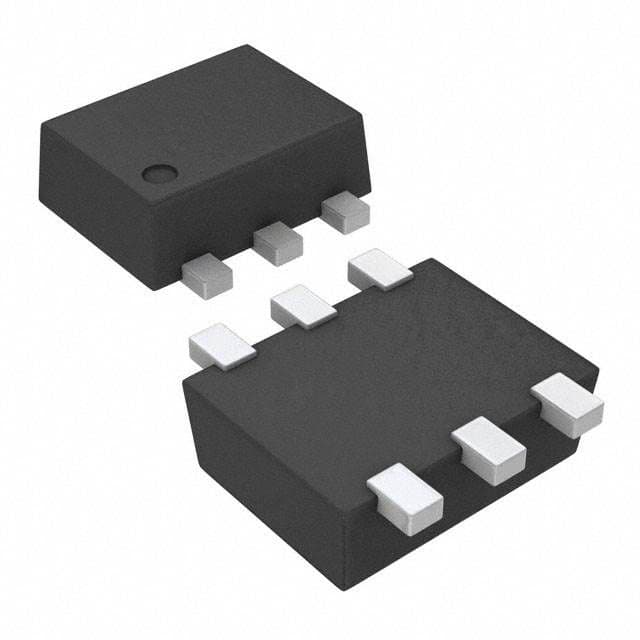

Product Images
