General-purpose analog switch, SPDT, 1-channel, 2:1 multiplexer/demultiplexer. Features a 300MHz bandwidth and 340MHz -3dB bandwidth. Operates from a single 1.65V to 5.5V supply with a low 1uA supply current. Offers 15Ω on-state resistance and 300ps propagation delay. Interface options include I2C, SPI, and UART. Packaged in a 6-SON (1.45mm x 1mm x 0.6mm) for surface mounting, with an operating temperature range of -40°C to 125°C.
PackageSON
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G3157DRYR technical specifications.
General
-3db Bandwidth
340MHz
Bandwidth
300MHz
Package/Case
SON
Height
600um
Interface
I2C, SPI, UART
Lead Free
Lead Free
Length
1.45mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
10uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
On-State Resistance
15R
Operating Supply Current
1uA
Package Quantity
5000
Packaging
Tape and Reel
Propagation Delay
300ps
RoHS Compliant
Yes
Supply Current
1uA
Supply Type
Single
Thickness
500um
Throw Configuration
SPDT
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G3157DRYR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G3157DRYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

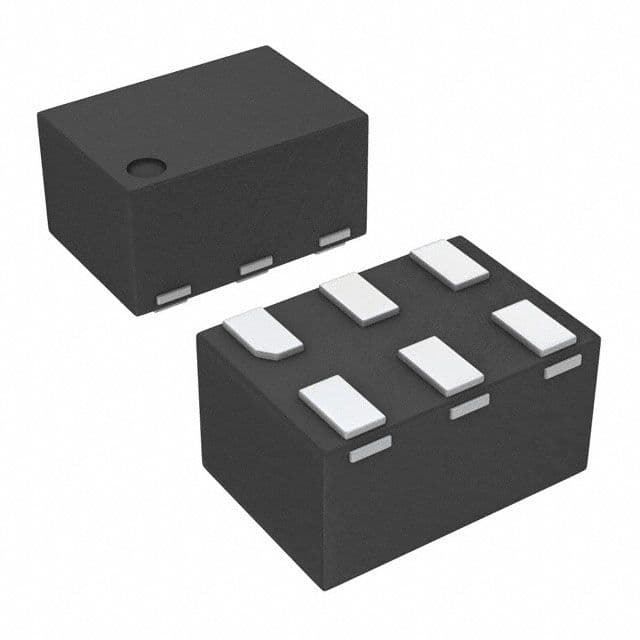

Product Images
