Single 3-input positive-OR gate, CMOS technology, operating from 1.65V to 5.5V. Features a 4.5ns propagation delay and 4.8ns turn-on delay. Surface mount SOT-23 package with dimensions of 3.05mm length, 1.75mm width, and 1.3mm height. Supports output currents up to 50mA, with high and low level output current of 32mA. Operating temperature range from -40°C to 125°C.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G332DBVR technical specifications.
General
Package/Case
SOT-23
Height
1.3mm
High Level Output Current
-32mA
Input Type
DIFFERENTIAL
Lead Free
Lead Free
Length
3.05mm
Logic Function
OR GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
32mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
3
Number of Inputs
3
Number of Output Lines
1
Number of Outputs
1
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
4.5ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
1.2mm
Turn-On Delay Time
4.8ns
Weight
0.000557oz
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G332DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G332DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

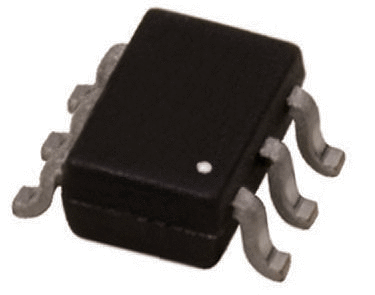

Product Images
