Single-channel, non-inverting buffer with push-pull CMOS output. This integrated circuit operates from a 1.65V to 5.5V supply voltage and features a 3.2ns propagation delay. It supports output currents of 32mA (low level) and -32mA (high level), with a quiescent current of 1uA. Packaged in a 5-pin SC-70 surface-mount format, this lead-free component is RoHS compliant and designed for operation between -40°C and 125°C.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G34DCKT technical specifications.
General
Package/Case
SC
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
3.2ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
9.9ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G34DCKT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G34DCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

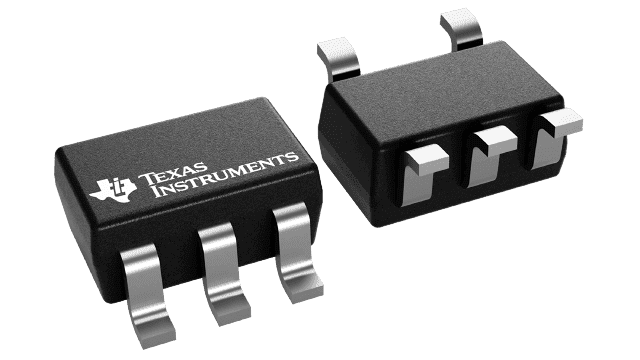

Product Images
