Single buffer gate IC, CMOS technology, operating from 1.65V to 5.5V. Features a 4.1ns propagation delay and 9.9ns turn-on delay. Supports 32mA high and low level output current. Packaged in a compact 1.6mm x 1.2mm x 550um SOT-553 surface mount case. RoHS and lead-free compliant, with an operating temperature range of -40°C to 125°C.
PackageSOT-553
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G34DRLR technical specifications.
General
Package/Case
SOT-553
High Level Output Current
-32mA
Lead Free
Lead Free
Length
1.6mm
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Package Quantity
4000
Packaging
Cut Tape
Polarity
Non-Inverting
Propagation Delay
4.1ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Thickness
550um
Turn-On Delay Time
9.9ns
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G34DRLR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G34DRLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

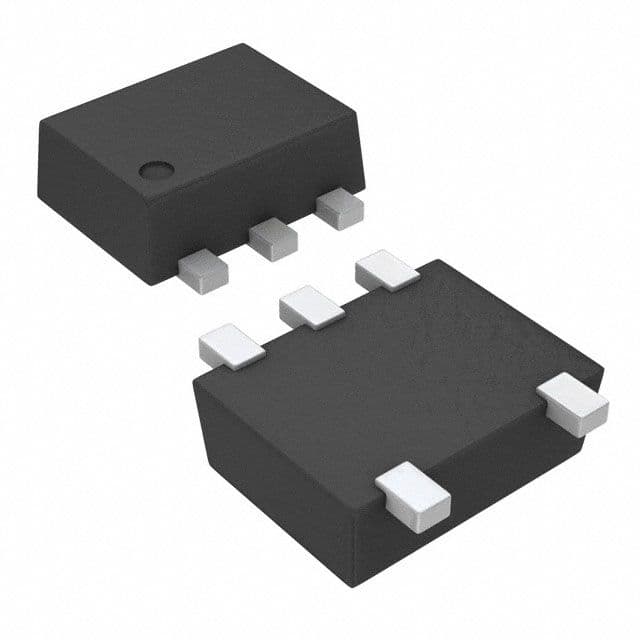

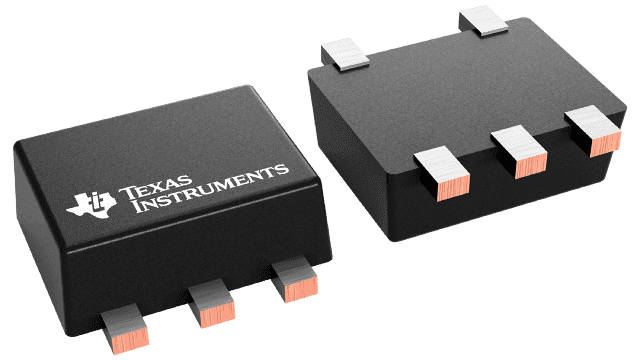

Product Images
