Single buffer gate IC, CMOS technology, operating from 1.65V to 5.5V. Features a 3.2ns propagation delay and 9.9ns turn-on delay. Supports ±32mA high/low level output current. Encased in a 6-SON surface mount package, suitable for operation between -40°C and 125°C. RoHS compliant and lead-free.
PackageSON
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G34DSFR technical specifications.
General
Package/Case
SON
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Package Quantity
5000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
3.2ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
9.9ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G34DSFR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G34DSFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

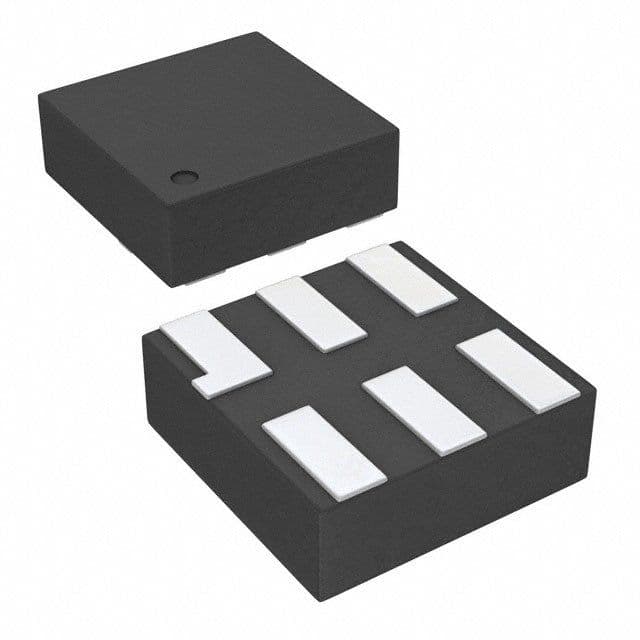

Product Images
