Single-channel CMOS buffer IC, operating from 1.65V to 5.5V supply. Features non-inverting logic with a 4.1ns propagation delay and 9.9ns turn-on delay. Supports high-level output current of -32mA and low-level output current of 32mA. Encased in a 5-DSBGA surface-mount package, this RoHS-compliant component operates across a temperature range of -40°C to 125°C.
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G34YZPR technical specifications.
General
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4.1ns
Quiescent Current
1uA
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
9.9ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G34YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G34YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

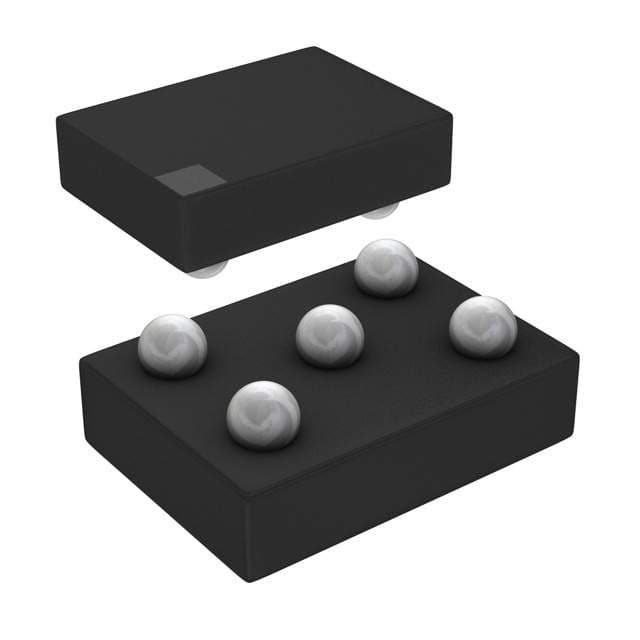

Product Images
