Technical Specifications
Texas Instruments SN74LVC1G38YZPR technical specifications.
General
Lead Free
Lead Free
Logic Function
NAND GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Circuits
1
Number of Elements
1
Number of Inputs
2
Number of Outputs
1
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
3.9ns
Quiescent Current
10uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G38YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G38YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

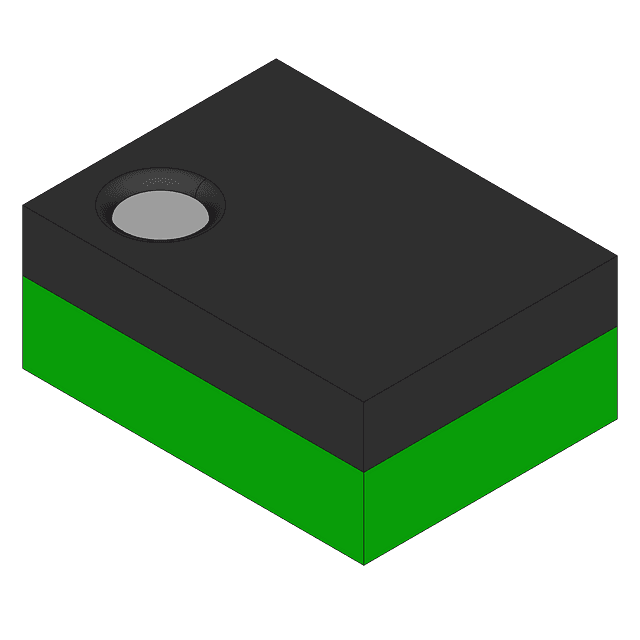

Product Images
