CMOS XOR Gate IC, featuring a single 2-input element. Operates with a supply voltage range of 1.65V to 5.5V and offers a maximum output current of 32mA. This surface-mount component, packaged in SOT-23, boasts a propagation delay of 4ns and a maximum operating temperature of 125°C. RoHS compliant and lead-free.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G86DBVR technical specifications.
General
Package/Case
SOT-23
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
XOR GATE, OR GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
32mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
15uA
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
32mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
4ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
1.2mm
Turn-On Delay Time
5ns
Weight
0.000557oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1G86DBVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G86DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

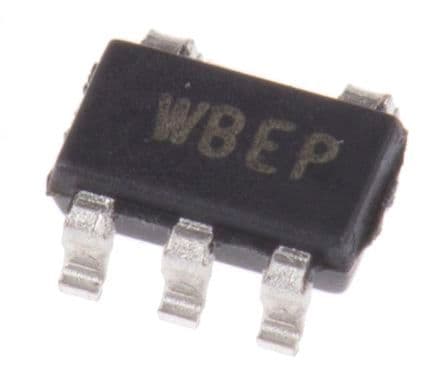

Product Images
