1-bit bidirectional voltage level translator, CMOS technology, supporting data rates up to 420Mbps. Features 3-state output, non-inverting polarity, and a propagation delay of 3.9ns. Operates with supply voltages from 1.65V to 5.5V, with output currents of ±32mA. Packaged in a 6-pin SOT-23 for surface mounting, this RoHS compliant component is ideal for signal translation applications.
PackageSOT-23
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1T45DBVT technical specifications.
General
Package/Case
SOT-23
Channel Type
Bidirectional
Data Rate
420Mbps
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Transceivers
1
Output Type
3-STATE
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
3.9ns
Quiescent Current
3uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
36.2ns
Weight
0.000229oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC1T45DBVT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1T45DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

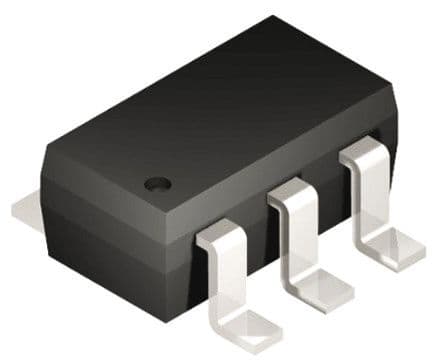

Product Images
