8-channel, non-inverting buffer/line driver featuring 3-state CMOS technology. Operates with a supply voltage range of 1.65V to 3.6V, supporting output currents of ±24mA. This surface-mount component offers a propagation delay of 5.7ns and is packaged in a 20-pin TVSOP on tape and reel. Designed for a wide operating temperature range of -40°C to 125°C, it boasts a low quiescent current of 1µA and is RoHS compliant.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC244ADGVR technical specifications.
General
Package/Case
TFSOP
High Level Output Current
-24mA
Logic Function
Buffer, Inverting
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
4
Number of Channels
8
Number of Elements
2
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
3
Number of Outputs
8
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5.7ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Thickness
1.05mm
Turn-On Delay Time
19.8ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC244ADGVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC244ADGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

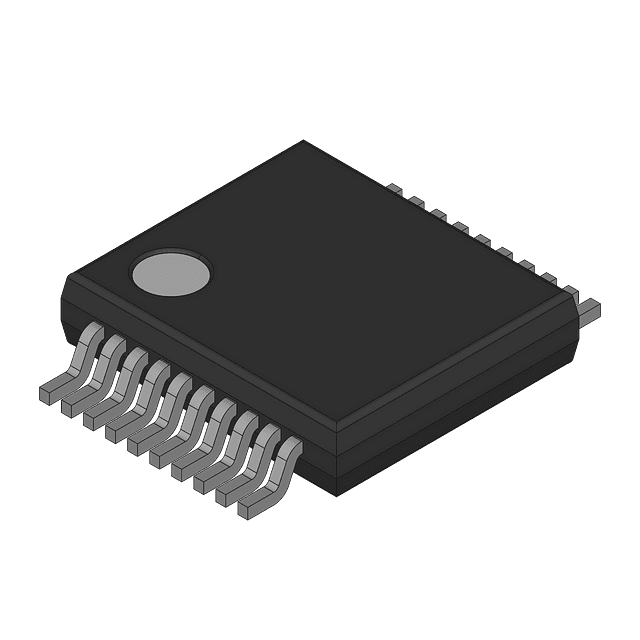

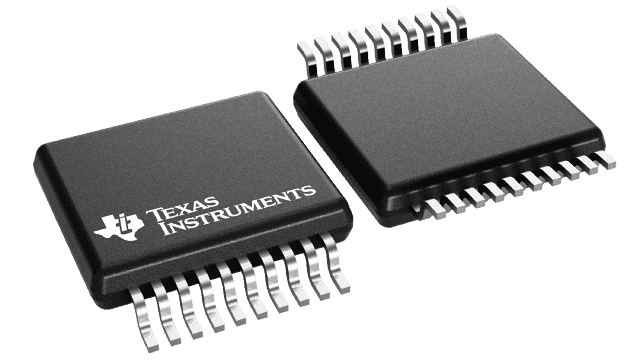

Product Images
