8-channel, 3-state buffer with non-inverting logic function. Features a wide operating voltage range of 1.65V to 3.6V and CMOS technology. Delivers 24mA high and low level output current with a propagation delay of 5.7ns. Packaged in a 20-TSSOP for surface mounting, operating from -40°C to 125°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC244APW technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-24mA
Logic Function
Buffer, Inverting
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
4
Number of Channels
8
Number of Elements
2
Number of Gates
8
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
3
Number of Outputs
8
Output Type
3-STATE
Package Quantity
70
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
5.7ns
Quiescent Current
1uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
19.8ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC244APW Datasheet
Download the complete datasheet for Texas Instruments SN74LVC244APW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

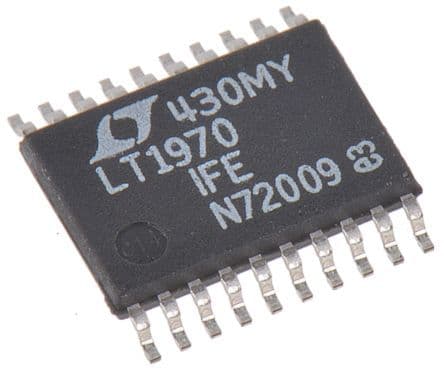

Product Images
