8-channel, 3-state buffer with non-inverting logic function. Features a wide operating voltage range of 1.65V to 3.6V and CMOS technology. Offers 8 output channels with a high level output current of -24mA and a low level output current of 24mA. Packaged in a 20-TSSOP surface mount configuration, this component operates from -40°C to 125°C with a propagation delay of 5.7ns.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC244APWR technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
4
Number of Channels
8
Number of Circuits
8
Number of Elements
2
Number of Gates
8
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
3
Number of Outputs
8
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5.7ns
Quiescent Current
1uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
19.8ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC244APWR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC244APWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

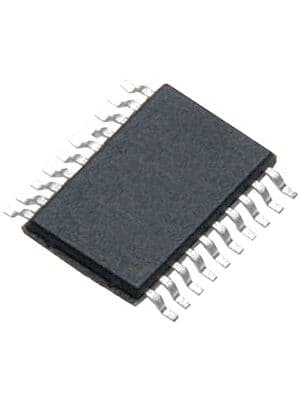

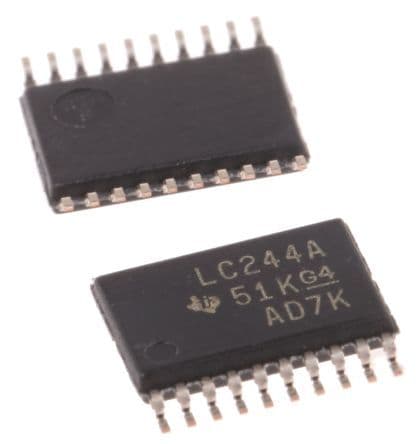

Product Images
