Quadruple 2-line to 1-line data selector/multiplexer featuring 3-state outputs. This surface-mount integrated circuit operates with a supply voltage range of 1.65V to 3.6V, supporting a 1.8V operating voltage. It offers 4 independent channels, each with 2 bits, and a bandwidth of 100MHz. The device boasts a propagation delay of 5.4ns and provides 24mA of high and low level output current. Designed for a wide operating temperature range of -40°C to 85°C, this lead-free, RoHS compliant component is packaged in a 16-SOIC format.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC257AD technical specifications.
General
Bandwidth
100MHz
Package/Case
SOIC
Height
1.58mm
High Level Output Current
24mA
Independent Circuits
1
Lead Free
Lead Free
Length
9.9mm
Logic Function
Multiplexer
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Channels
4
Number of Circuits
4
Operating Supply Voltage
1.8V
Output Type
3-STATE
Package Quantity
40
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
5.4ns
Quiescent Current
10uA
RoHS Compliant
Yes
Series
74LVC
Supply Type
Single
Throw Configuration
DPST
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC257AD Datasheet
Download the complete datasheet for Texas Instruments SN74LVC257AD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

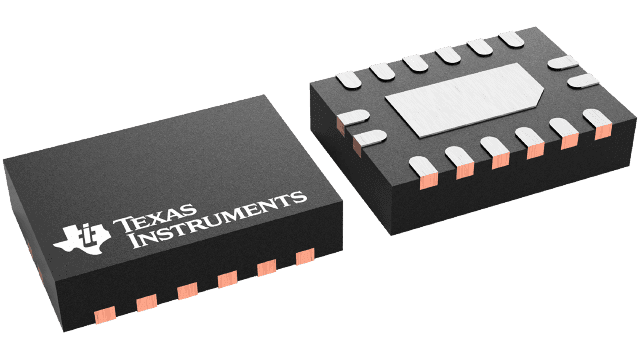

Product Images
