Dual-channel CMOS buffer with Schmitt-trigger inputs, operating from 1.65V to 5.5V. Features push-pull outputs with ±32mA high/low output current and a 4.3ns propagation delay. This surface-mount component, housed in a SOT-23 package, offers a wide operating temperature range of -40°C to 125°C and a low quiescent current of 10µA. RoHS compliant and lead-free.
PackageSOT-23
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G17DBVT technical specifications.
General
Package/Case
SOT-23
High Level Output Current
-32mA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Logic Function
Schmitt Trigger, Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
10uA
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
2
Number of Outputs
2
Output Type
PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4.3ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
1.2mm
Turn-On Delay Time
9.3ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G17DBVT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G17DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

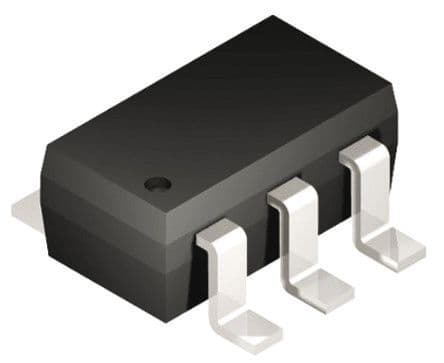

Product Images
