Dual-channel buffer with Schmitt-trigger inputs, operating from 1.65V to 5.5V. Features push-pull output and non-inverting logic. CMOS technology ensures low quiescent current of 10µA. Suitable for surface mount applications with a propagation delay of 4.3ns. Packaged in tape and reel, this component offers 2 bits of functionality with a maximum operating temperature of 125°C.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G17DCKR technical specifications.
General
| Package/Case | SC |
| High Level Output Current | -32mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting, Schmitt Trigger |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Nominal Supply Current | 10uA |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 2 |
| Number of Outputs | 2 |
| Output Type | PUSH-PULL |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 4.3ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Thickness | 900um |
| Turn-On Delay Time | 9.3ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC2G17DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G17DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

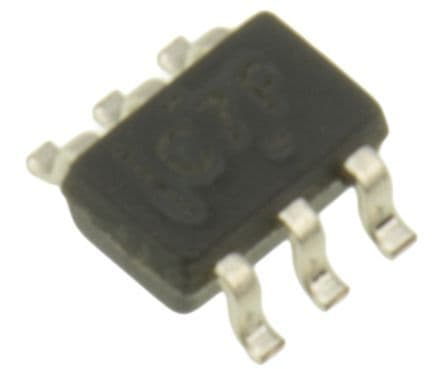

Product Images
