Dual 1-bit Schmitt-trigger buffer IC, operating from 1.65V to 5.5V supply. Features non-inverting logic with 2 channels and 2 elements. Offers 4.3ns propagation delay and 9.3ns turn-on delay. Supports ±32mA output current and 10µA quiescent current. Packaged in a 6-pin SC package for surface mounting, with a wide operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G17DCKT technical specifications.
General
Package/Case
SC
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Schmitt Trigger, Buffer
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Elements
2
Number of Gates
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
2
Number of Outputs
2
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4.3ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
9.3ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G17DCKT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G17DCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

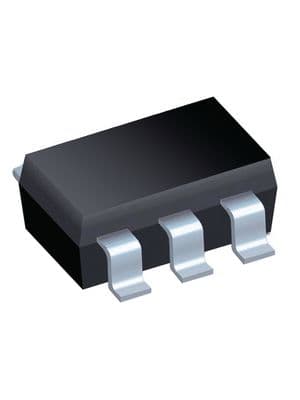

Product Images
