Dual 2-channel general-purpose analog switch, SPST configuration, operating from 1.65V to 5.5V single supply. Features low 10 Ohm on-state resistance and 300MHz -3dB bandwidth. Surface mountable in an 8-VSSOP package, this RoHS compliant component offers a 600ps propagation delay and operates across a -40°C to 85°C temperature range.
PackageVSSOP
Resistance10R
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G66DCUT technical specifications.
General
-3db Bandwidth
300MHz
Package/Case
VSSOP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
1uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Channels
2
Number of Circuits
2
On-State Resistance
10R
Operating Supply Current
10uA
Package Quantity
250
Packaging
Tape and Reel
Propagation Delay
600ps
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10R
RoHS Compliant
Yes
Supply Type
Single
Termination
SMD/SMT
Thickness
850um
Throw Configuration
SPST
Weight
0.000339oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G66DCUT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G66DCUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

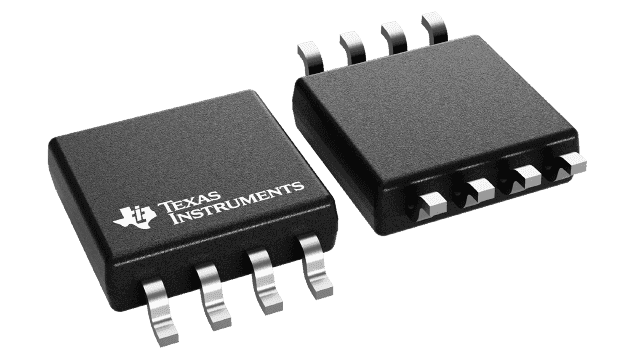

Product Images
