Texas Instruments
SN74LVC2G74DCT3
Single Positive-Edge-Triggered D-Type Flip-Flop with Clear and Preset 8-SM8 -40 to 125
Frequency140MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G74DCT3 technical specifications.
General
Clock Edge Trigger Type
Positive Edge
Frequency
140MHz
High Level Output Current
32mA
Input Capacitance
5pF
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Bits per Element
1
Number of Elements
1
Propagation Delay
6.1ns
Quiescent Current
10uA
RoHS Compliant
Yes
Series
74LVC
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G74DCT3 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G74DCT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

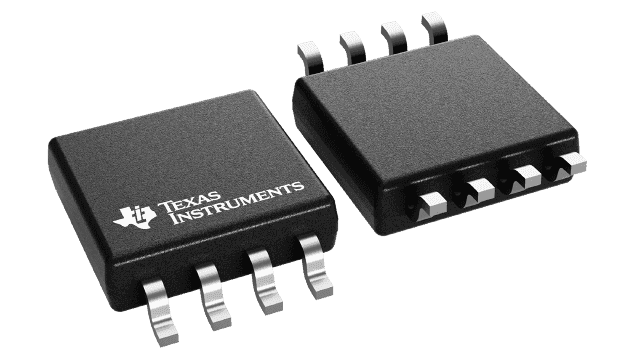

Product Images
